Stainless Steel Woven Mesh
Stainless Steel Woven Mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.
WeChat : +86 15376151173
Contact Us

Product Parameters

Stainless Steel Woven Mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.


Stainless Steel Woven Mesh For Sale

Product

Stainless Steel Woven Mesh

Raw Material

SS 201,304,304L, 316,316L, 430,ect stainless steel wire

Diameter

0.0008″-0.12″

Mesh

2-635mesh

Open Area

25-84.6

Roll Width

Max 240″

Roll Length

Max 2000′

Application

Filters ,sieve,chemical industry, mine industry, etc

Packaging

Inner kraft paper, outside plastic cloth, put into wooden pallet or case


Specification sheet of the plain weave woven wire cloth

Mesh/Inch

Absolute micron retention (μm)

Weight (kg/m2)

Cloth Thickness (mm)

80 × 300

32 - 36

0.98

0.25

80 × 400

36 - 45

0.82

0.23

50 × 250

56 - 63

1

0.32

50 × 280

71 - 75

1

0.32

40 × 200

75 - 80

1.3

0.4

30 × 150

80 - 100

1

0.5

24 × 110

100 - 112

2.5

0.76

22 × 140

140 - 170

2.1

0.66

20 × 150

160 - 180

1.55

0.5

20 × 150

170 - 190

1.6

0.55

18 × 100

200 - 210

2.05

0.69

14 × 110

220 - 240

2.15

0.72

12 × 95

240 - 260

2.3

0.79

14 × 88

280 - 300

3.15

0.76

10 × 90

270 - 290

2.5

0.93

12 × 64

280 - 300

4.1

1.21

10 × 70

315 - 335

3

1.04

8 × 85

330 - 350

2.5

0.93


Specification of the twill weave stainless steel wire cloth.

Mesh/Inch

Absolute micron retention (μm)

Weight (kg/m2)

Cloth Thickness (mm)

510 × 3600

4-5

0.3

0.06

400 × 2800

5-6

0.36

0.06

375 × 2300

6-7

0.39

0.08

325 × 2300

7-8

0.47

0.09

260 × 1550

8-10

0.68

0.12

250 × 1400

11-12

0.68

0.12

200 × 1400

11-13

0.75

0.14

130 × 700

13 - 15

1.6

0.28

200 × 1120

15 - 17

0.95

0.16

165 × 1400

15 - 18

0.7

0.15

165 × 1100

20 - 21

0.9

0.16

80 × 700

34 - 36

1.2

0.26

40 × 560

71 - 80

1.7

0.39

30 × 360

95 - 106

2.6

0.54

30 × 250

100 - 112

3.2

0.65

20 × 260

110 - 120

3.1

0.67

28 × 560

106 - 112

1.95

0.46

24 × 300

112 - 118

2.85

0.63

Note: Special size and specification can be customized.

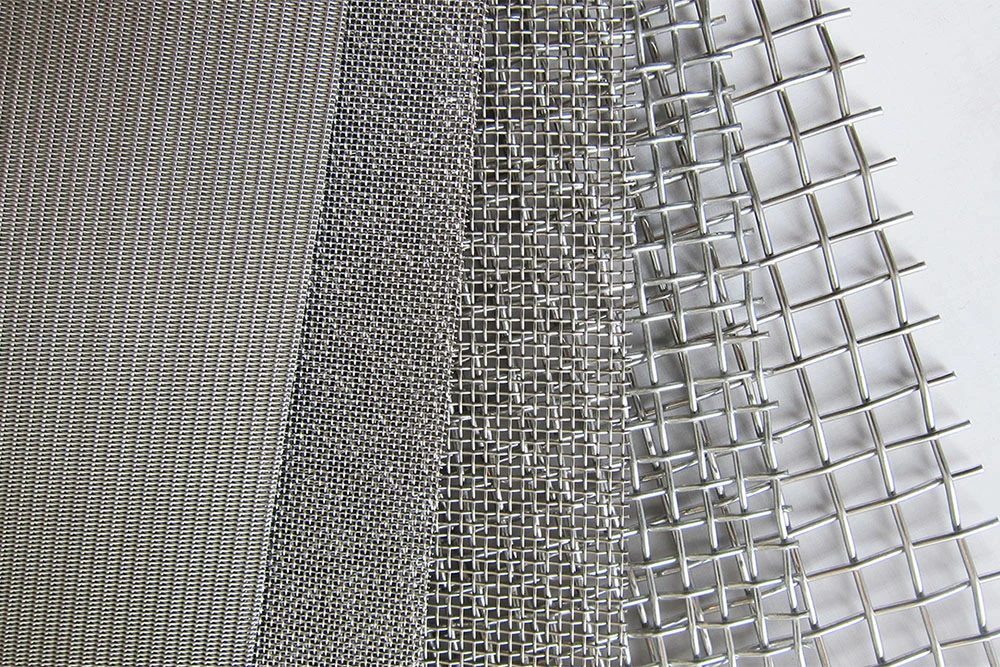

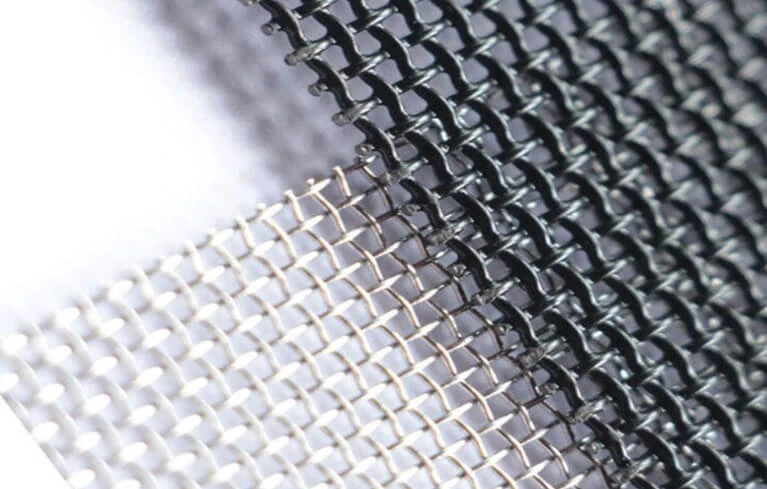

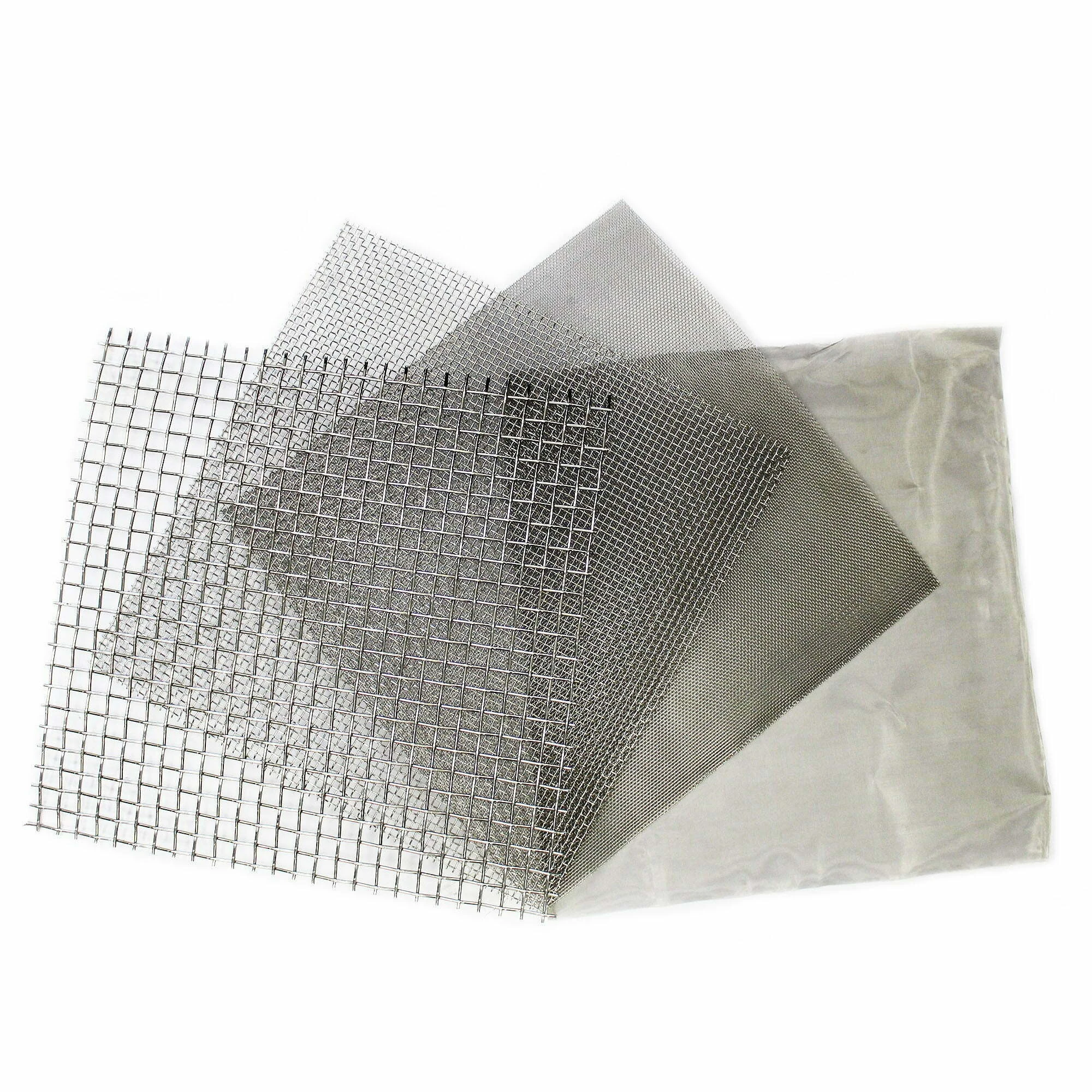

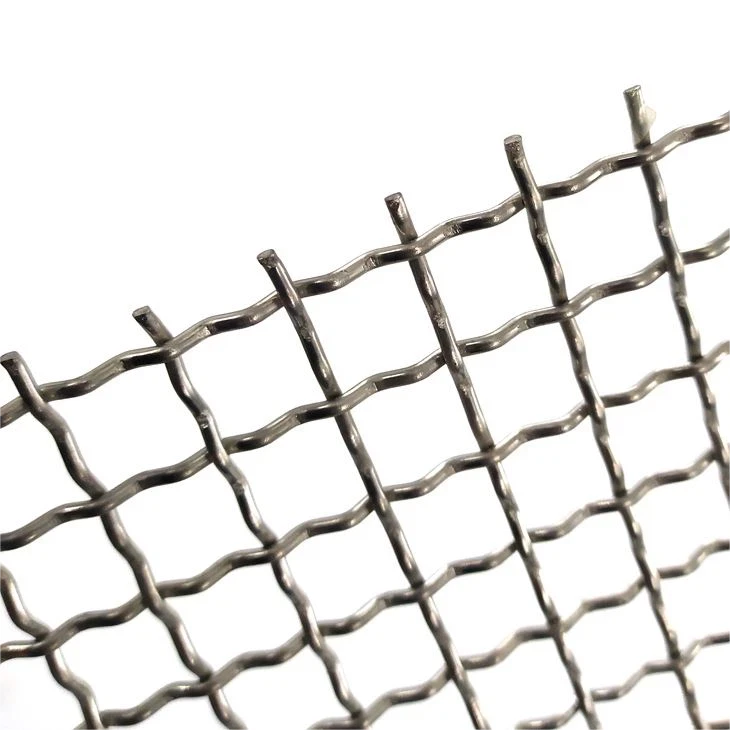

Product Display

Stainless Steel Mesh

FAQ

Q1. Can you do OEM?

A1. Yes.of course.We can produce the products as per your request.

If you can offer samples to us,it will be more convenient.

Q2.How long does it take for delivery?

A2. Production lead time 5 days, and the delivery time will be discussed in detail according to the specific situation.

Q3. If I want to order a small quantity goods,can you do it?

A3. If the product you need we have stock available,that would be great,you can choose the instock goods.

but if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .

Q4. How will you follow my order?

A4. When the goods are started to produce,we will take photos for the goods and send it to you.

If you find any production deficiencies,please contact us to correct it.

We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the

latest news about your order.

After the goods are finish,we will take photos for the goods and packing to you before shipping.

Q5. What is your exporting countries?

A5. We have good sales performance and win good international reputation in more than 30 Countries and

regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.

Especially in the Middle East and Australia market.

Q6: Can you arrange the shipment for us?

A6: Yes, Our freight forwarders are through the company tender, signed long-term agreement, Price Service is the best. we have designated sea-freight and railway freight Forwarders with decades of experiences and we can get the best price with earliest vessel and professional services.
