Stainless Steel Rope Mesh
Stainless Steel Rope Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel Cable Mesh, Stainless Steel Wire Rope Mesh, it is produced of high quality stainless steel wire cable. It can be divided into ferrule type and inter-woven type by production crafts.
Contact Us

Product Parameters

Stainless Steel Rope Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel Cable Mesh, Stainless Steel Wire Rope Mesh, it is produced of high quality stainless steel wire cable. It can be divided into ferrule type and inter-woven type by production crafts.Stainless steel cable mesh is made from stainless steel wire rope in various material type like AISI 304 , AISI 316 , AISI 316L etc. The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19. The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.


Stainless Steel Rope Mesh For Sale

Stainless Steel Rope Mesh

Type

Knotted cable mesh

Ferrule cable mesh

Combination

Inter-woven

Seamless ferrule

Hole pattern

90 degree diamond hole

60 degree diamond hole

Material

SS304, 316, 316L, etc

Cable diameter

1 ~ 4 mm

Cable structure

7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Diamond size

20 ~ 200 mm

Mesh Orientation

Horizontal , Vertical

Application

Bird net, zoo, greenhouse, airport, farm fencing, etc

Packing

Carton, wooden box available, or as per your requirement


Cable diameter

Mesh opening size

Nominal break

inch

mm

inch

mm

lbs.

1/8

3.2

4x4

102x102

1600

1/8

3.2

3x3

76x76

1600

1/8

3.2

2x2

51x51

1600

3/32

2.4

4x4

102x102

920

3/32

2.4

3x3

76x76

920

3/32

2.4

2x2

51x51

920

5/64

2

3x3

76x76

676

5/64

2

2x2

51x51

676

5/64

2

1-1/2x 1-1/2

38x38

676

1/16

1.6

3x3

76x76

480

1/16

1.6

2x2

51x51

480

1/16

1.6

1-1/2x 1-1/2

38x38

480

1/16

1.6

1x1

25.4x25.4

480

3/64

1.2

1-1/2x 1-1/2

38x38

270

3/64

1.2

1x1

25.4x25.4

270

3/64

1.2

4/5x4/5

20x20

270

Note: Special size and specification can be customized.

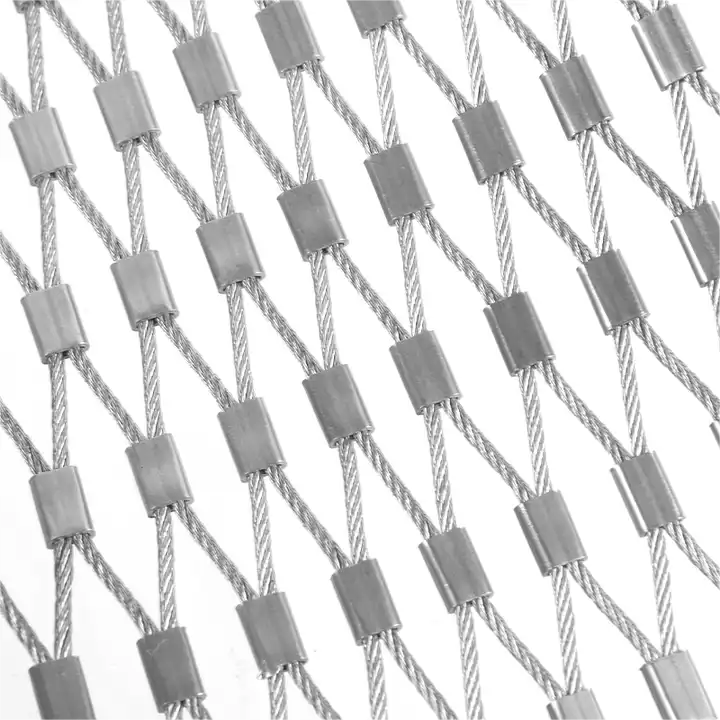

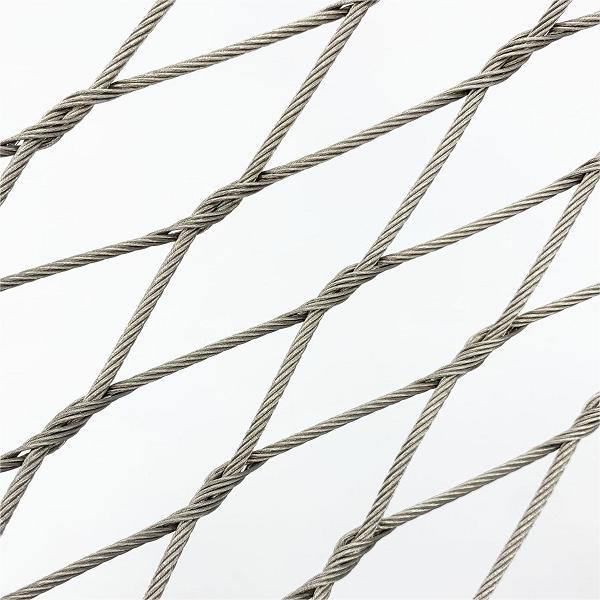

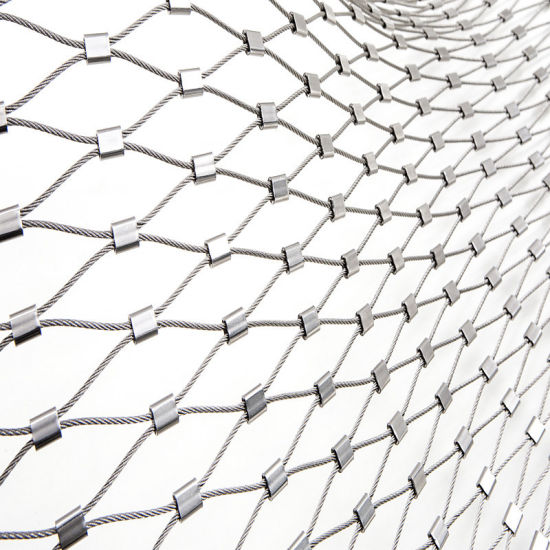

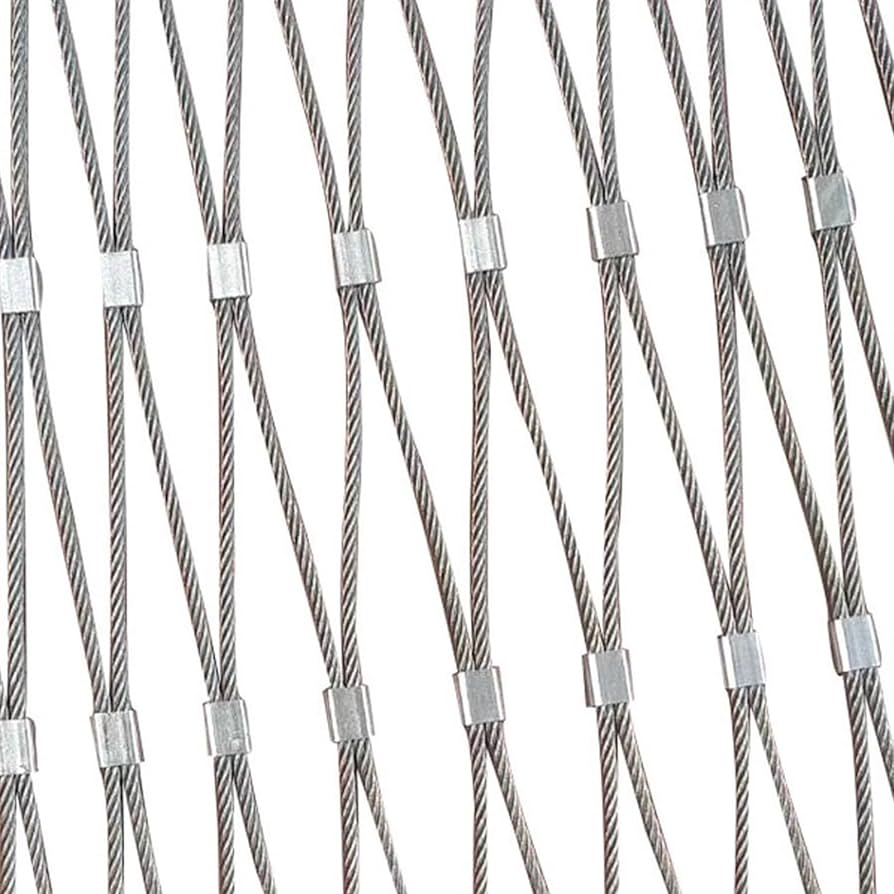

Product Display
